| Tên thương hiệu: | ADVS |
| Số mô hình: | HPL27 |
| MOQ: | 5 |
| giá bán: | USD 270000-1500000 |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T |
Product Description

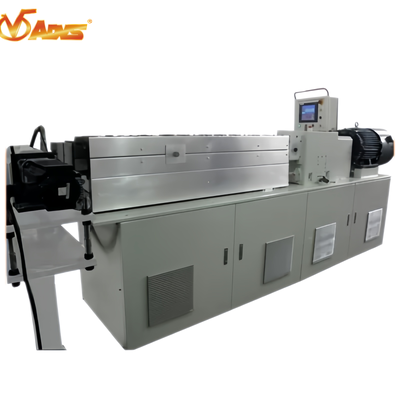

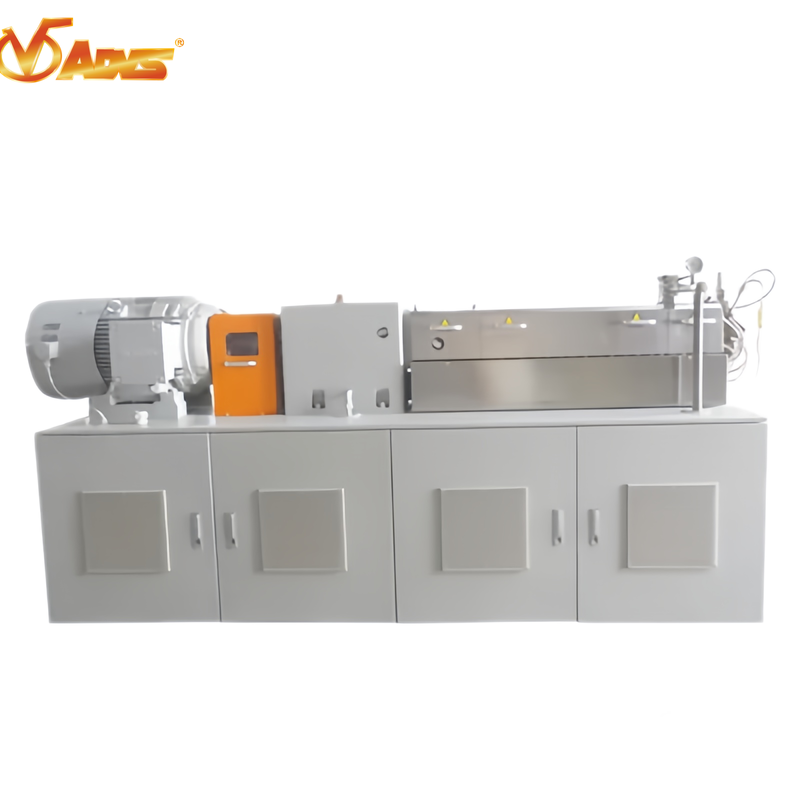

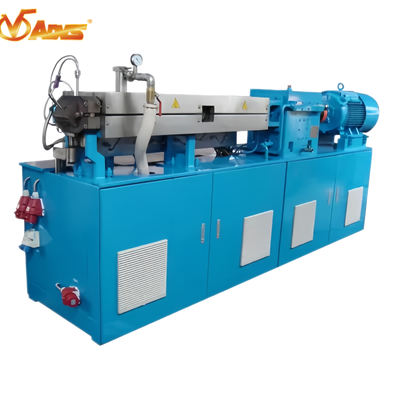

HPL 27 Co-rotating Twin Screw Extruder with Split-Casting Barrel Structure
1. Technical Data of HPL27 Standard Extrusion
| Type / Data | Screw diameter (mm) | Center distance (mm) | T/A³ | Max. Speed (rpm) | Motor power (kW) | OD/ID | Output range (kg/h) |
|---|---|---|---|---|---|---|---|
| HPL27 | 27 | 22.5 | 10.4 | 1500 | 37 | 1.55 | 80–100 |
| HPL27 | 27 | 22.5 | 11.3 | 1000 | 22 | 1.55 | 50–70 |
2. Configuration Features of HPL27 Extruder
Gearbox
Bilateral symmetry gear drive system. Design service life exceeds 72,000 hours. Average torque coefficient is 10.4. Bearings are from SKF (Sweden) and INA (Germany).
Torque limiter
Torque limiter imported from Germany.
Barrels
Integrated wear-resistant alloy steel liner. The barrel channel is of annular jet type, which is not prone to blockage.
Screw shaft
Material of screw elements: W6Cr5Mo4V2. Material of shaft: imported from Finland.
Heating medium
Heating rod imported from Germany.
Machine frame
High-rigidity whole steel plate welded frame.
Electrical system
PLC and instrument control available (user’s choice). Control cabinet and power cabinet are separate; strong and weak electricity are isolated.
3. Typical Applications
Reinforced modification
PP, PA, PBT, ABS, PC
Reaction extrusion
Polyreaction and polycondensation
Special engineering plastics
PEEK, PEI, PPS, LCP, etc.
Masterbatch
Color masterbatch, flame retardant masterbatch, carbon black masterbatch, degradable masterbatch
